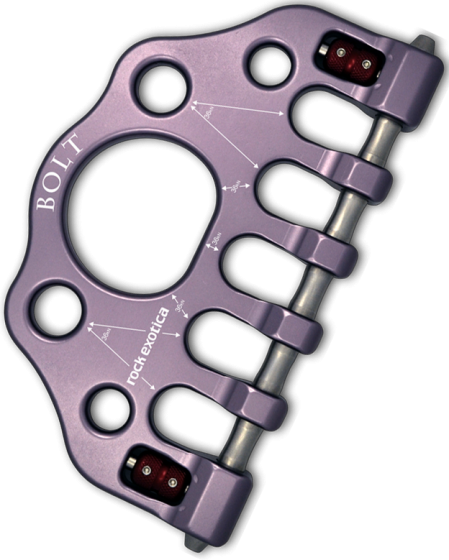

The Bolt

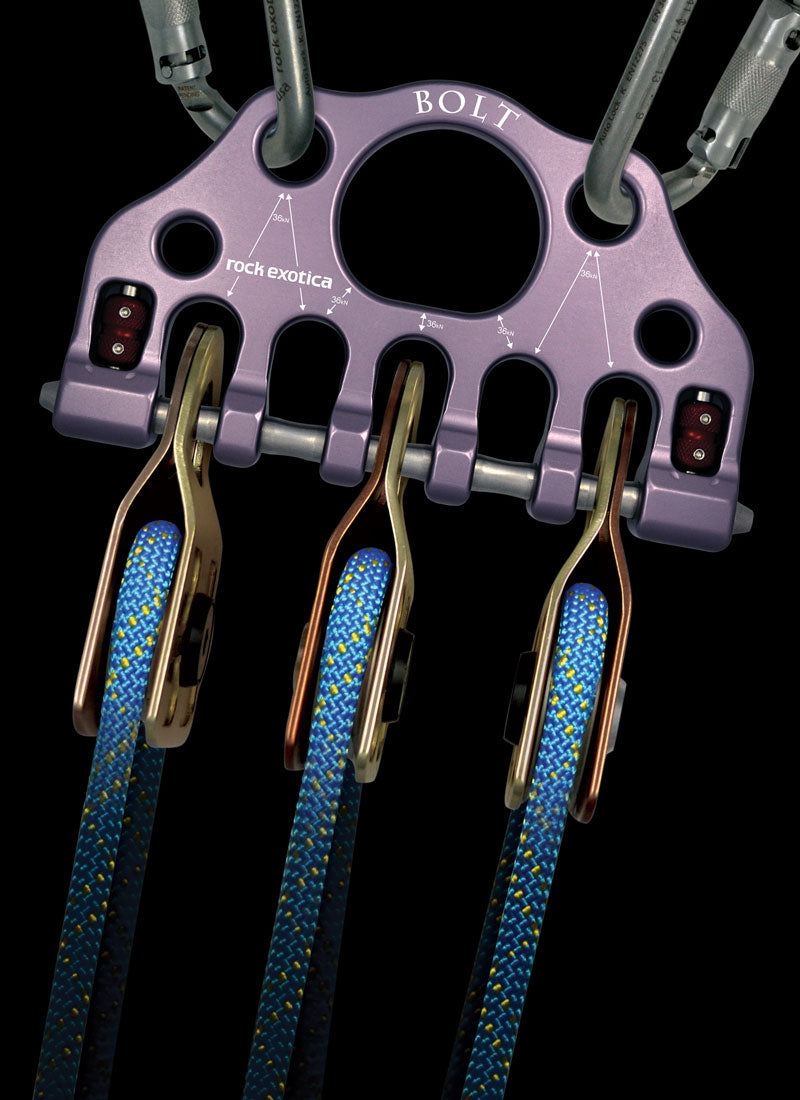

The BOLT rig plate uses a quick-detatchable stainless steel rod, or ‘bolt’, that allows you to connect your gear directly to the five connection points without using carabiners. The result is a cleaner connection, and when pulleys are involved, more efficient use of space when lined up side by side than when using a traditional rig plate.

Part#: RP5
MBS: 36kN
Weight: 17.25 oz (489gm)
Width: 8.0" (203mm)
Height: 5.0" (127mm)
Thickness: .88" (22mm)
Material: Aluminum Alloy (Body)
Stainless Steel (Pin)
Certification: NA
