PROSERIES® ALUMINUM KEY-LOCK CARABINERS
PROSERIES® ALUMINUM KEY-LOCK CARABINERS
Couldn't load pickup availability

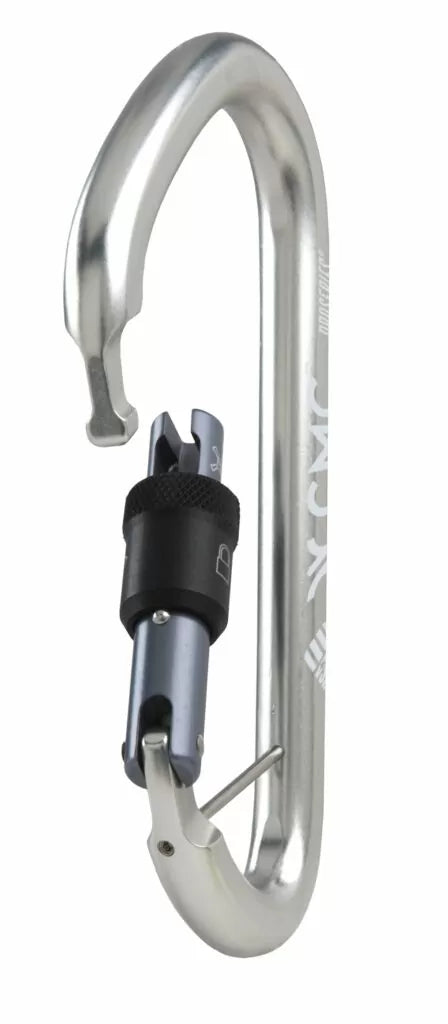

Rescuers working in the most demanding circumstances will appreciate our ProSeries Aluminum Carabiners, the first aluminum carabiners to meet NFPA strength requirements for General Use. Combining high performance with minimum weight, these carabiners significantly reduce the weight of a rescuer’s gear while maintaining the highest possible margin of safety. The patented key-lock design eliminates snagging when removing the carabiner from your harness, and a redesigned gate provides a full 1.1 inch (28 mm) opening on the standard size version and a 2.1 inch (53 mm) opening on the XL version. Gate choices include the traditional Screw-Lock, our easy-to-open-with-one-hand Auto-Lock, our innovative Manual-Lock, and an ANSI-certified (Z359.12) gate SKU #300273. All of the XL carabiners have a removable keeper pin.
Every carabiner is proof loaded. Serial numbers on every carabiner.
| ProSeries | Major Axis | Minor Axis | Major Axis, Gate Open |
|---|---|---|---|
| 300221 | 47 kn | 17 kn | 15 kn |
| 300233 | 40 kn | 11 kn | 15 kn |
| 300262 | 40 kn | 11 kn | 15 kn |
| 300241 | 46 kn | 12 kn | 12 kn |
| 300253 | 41 kn | 15 kn | 12 kn |
| 300273 | 41 kn | 16 kn | 12 kn |
| OPTION | ITEM | PRODUCT WEIGHT | GATE OPENING | INTERIOR LENGTH | GATE / COLOR | NFPA RATING | 3 SIGMA MBS | PRICE |
|---|---|---|---|---|---|---|---|---|

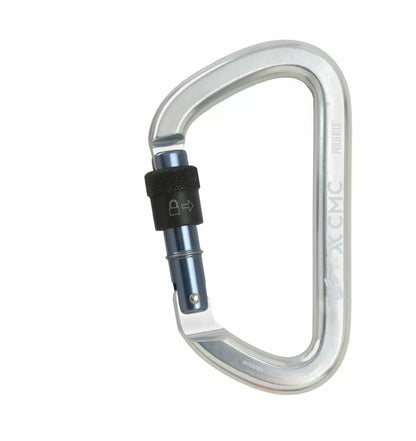

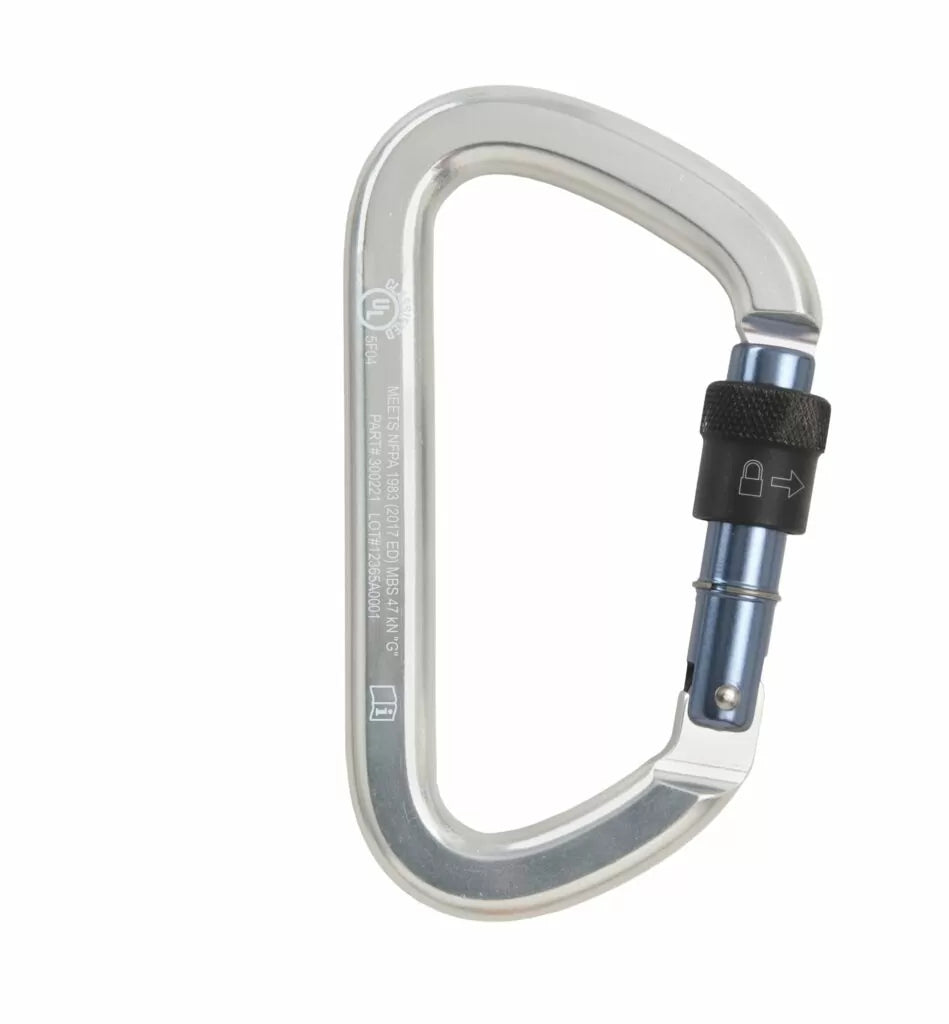

| Screw-Lock, Brite | 300221 | 5 OZ (142 G) | 1.1 IN (28 MM) | 4.05 IN (103 MM) | SCREW-LOCK / BRITE | GENERAL USE | 47 KN (10,566 LBF) | $47 |

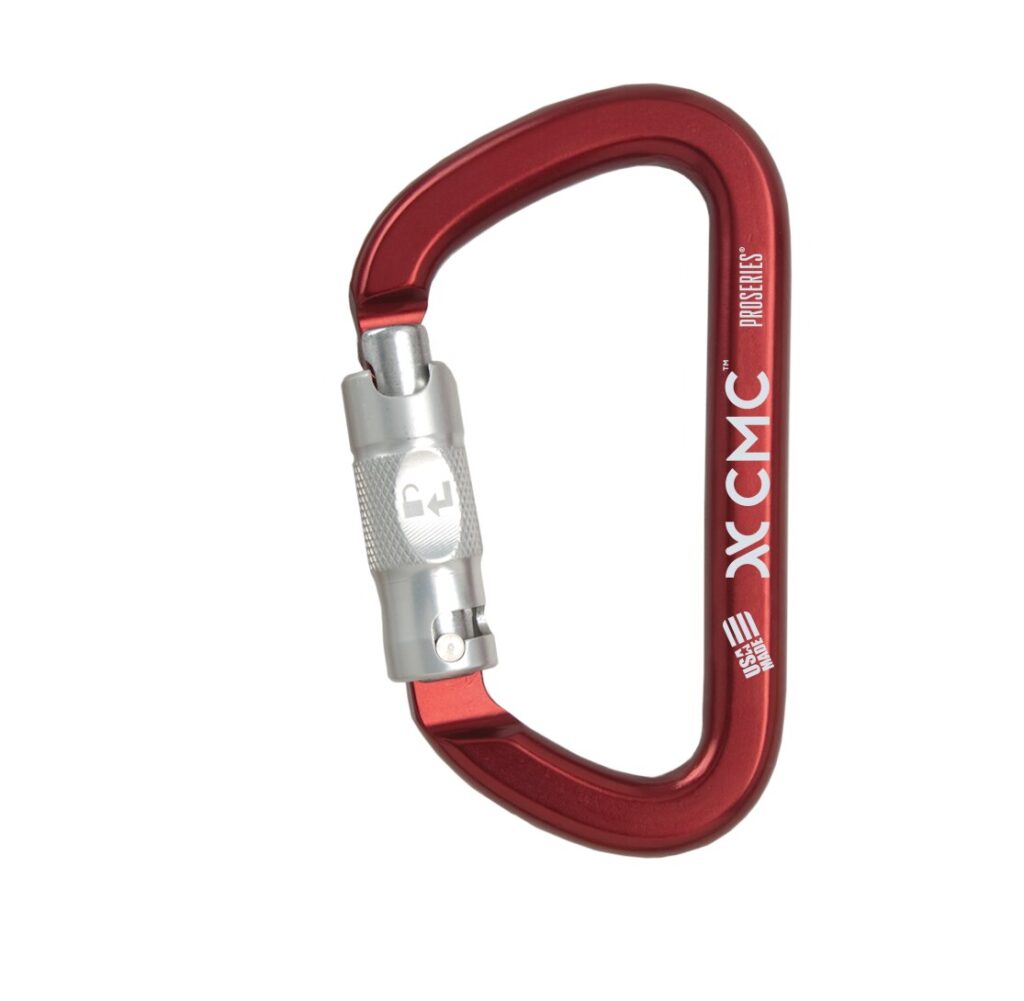

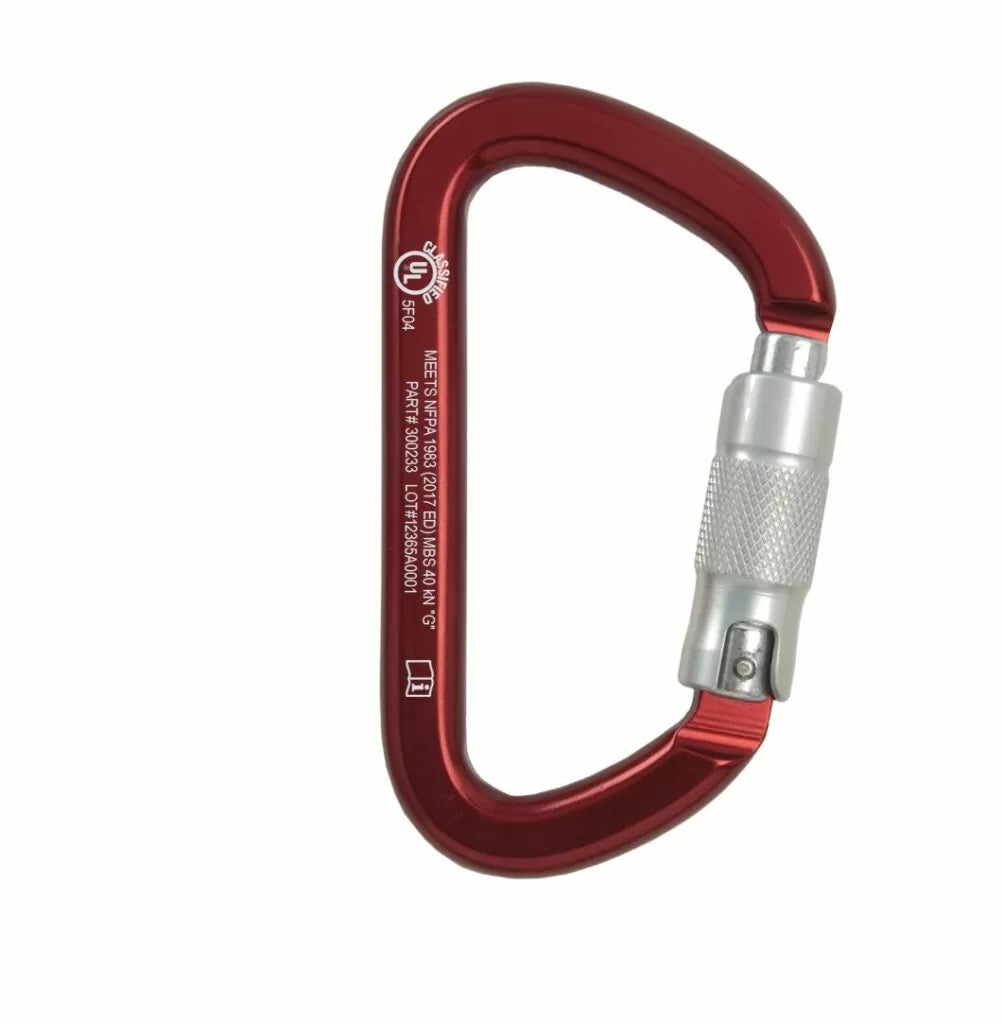

| Auto-Lock, Red | 300233 | 5.3 OZ (150 G) | 1.1 IN (28 MM) | 4.05 IN (103 MM) | AUTO-LOCK / RED | GENERAL USE | 40 KN (8,992 LBF) | $53 |

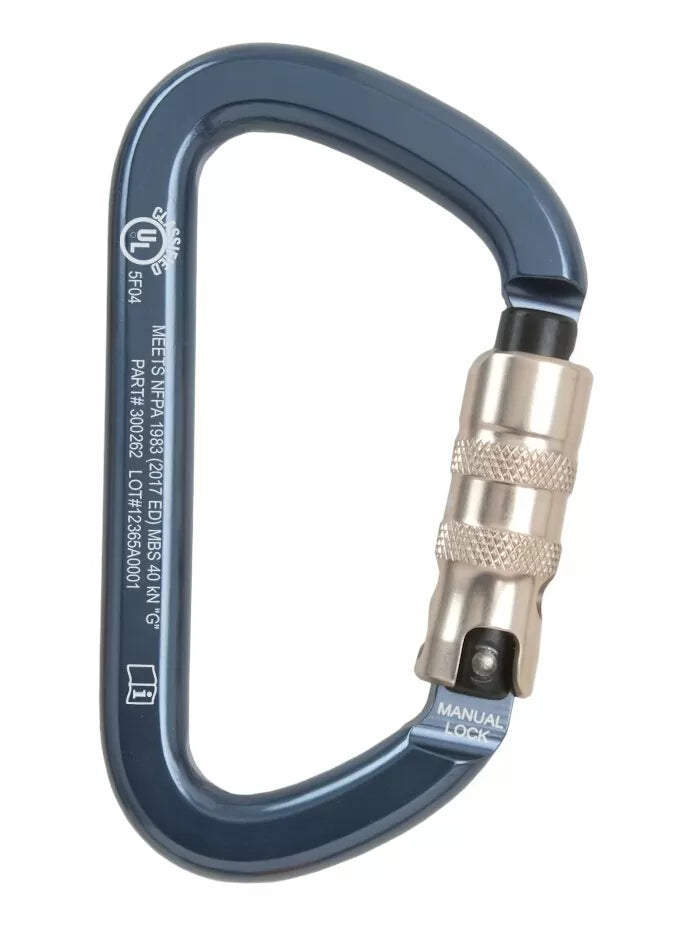

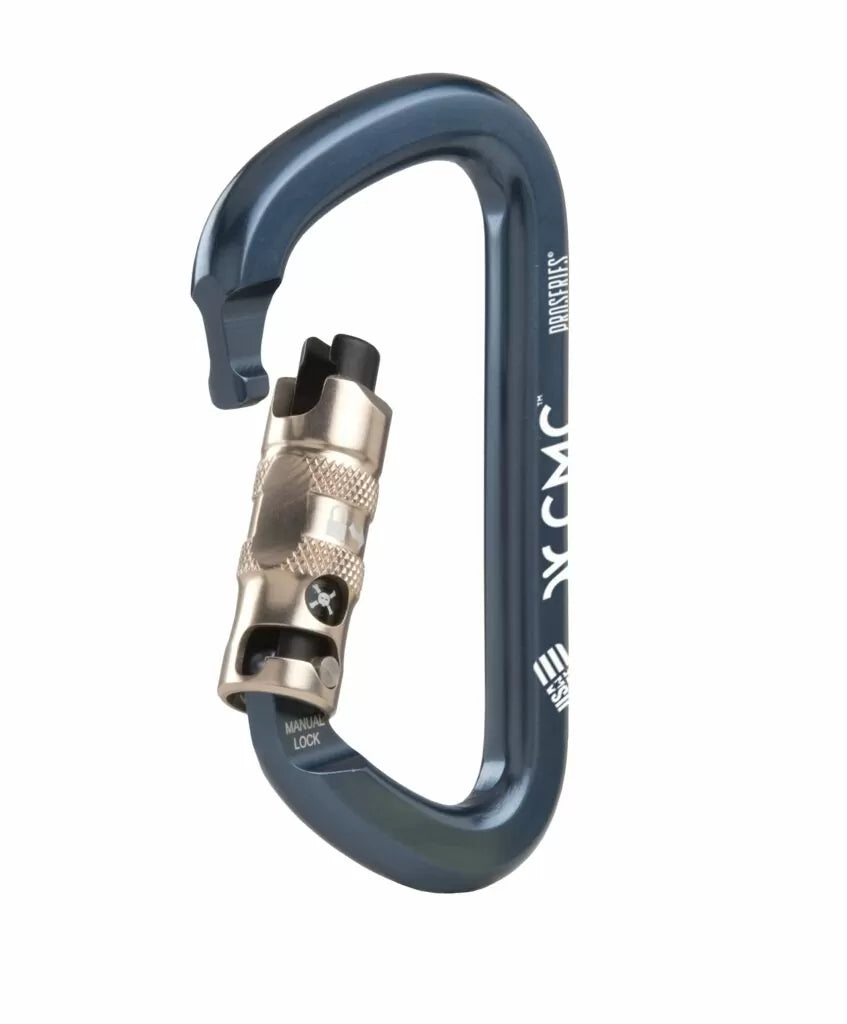

| Manual-Lock, Slate | 300262 | 5.3 OZ (150 G) | 1.1 IN (28 MM) | 4.05 IN (103 MM) | MANUAL-LOCK / SLATE | GENERAL USE | 40 KN (8,992 LBF) | $53 |

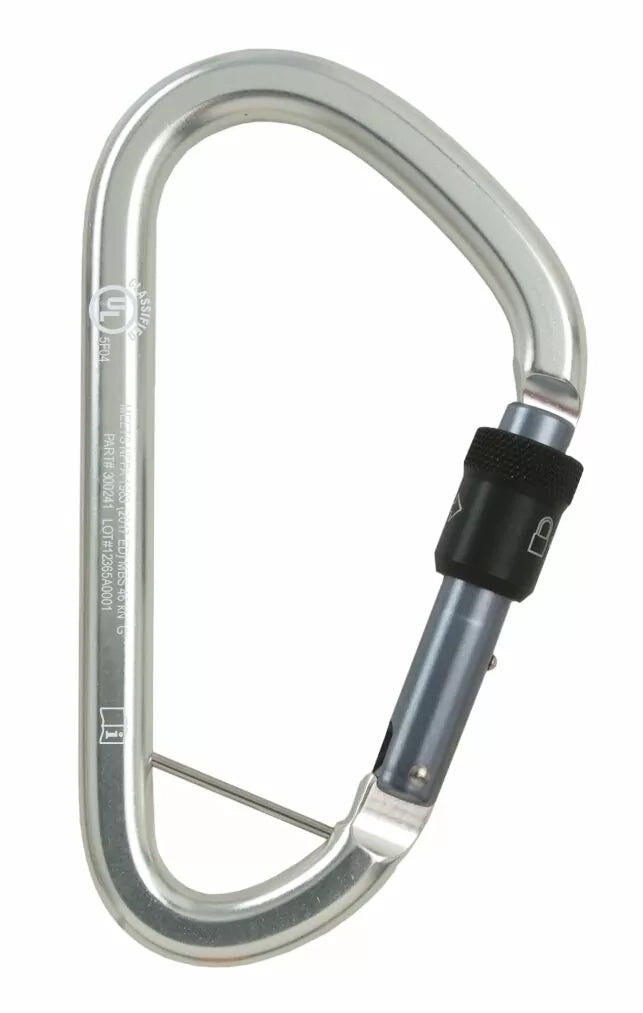

| XL Screw-Lock, Brite | 300241 | 9.4 OZ (266 G) | 2.1 IN (53 MM) | 6.62 IN (168 MM) | XL SCREW-LOCK / BRITE | GENERAL USE | 46 KN (10,341 LBF) | $69 |
| XL Auto-Lock, Red | 300253 | 10.2 OZ (289 G) | 2.1 IN (53 MM) | 6.62 IN (168 MM) | XL AUTO-LOCK / RED | GENERAL USE | 41 KN (9,217 LBF) | $71 |

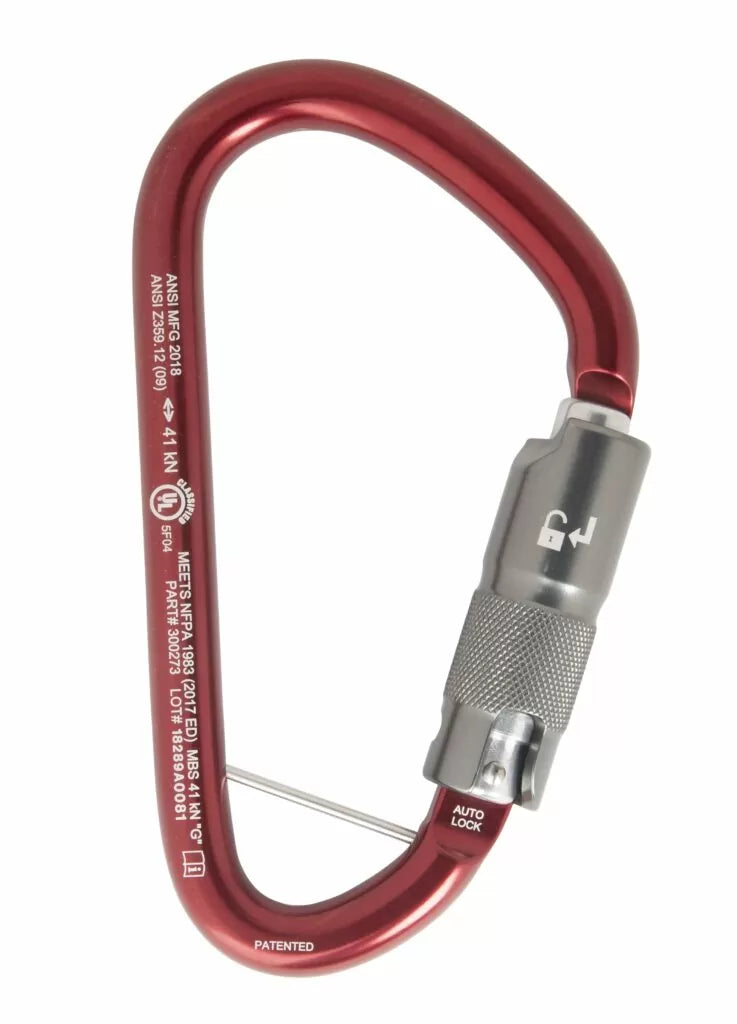

| XL ANSI-Gate, Red | 300273 | 11.36 OZ (322 G) | 2.1 IN (53 MM) | 6.62 IN (168 MM) | ANSI CERTIFIED (Z359.12) GATE / RED | GENERAL USE | 41 KN (9,217 LBF) | $76 |
| Keeper Pin Replacement Set (XL ProSeries) | 300005 | 3X PINS, 3X SCREWS, 1X HEX WRENCH | NA | NA | NA | NA | NA | $14 |
