CMC AZTEK PROSERIES® SYSTEM

UL Classified to NFPA 1983 (2017 ED) – General Use

Originally developed by Reed Thorne of Arizona-based Ropes That Rescue, the AZTEK (Arizona Technician’s Edge Kit) is in use worldwide and offers more than 100 rigging solutions in a single bag. As one of the most versatile tools used in rope rescue, the system reflects the philosophy of keeping rigging equipment simple, efficient, non-specialized, light and small.

The subsequent design of the new CMC AZTEK ProSeries^® System leaves no detail ignored. Each component — from the cord to the pack—was thoroughly tested and proven to work efficiently in this multifunctional system that comes completely pre-rigged for immediate deployment to the field. The CMC AZTEK ProSeries System was the first AZTEK system to be UL Classified to NFPA 1983–General Use–Manufactured System.

With 15.2 m (50 ft) of 8 mm AZTEK ProSeries^® Cord, CMC’s high-performance 100% nylon blend, the set-of-fours can extend to 3.6 m (12 ft) while providing a 4:1 or 5:1 mechanical advantage with a minimum breaking strength (MBS) of 38 kN (8,542 lbf).

For a personal edge travel-restrict with nearly 15.2 m (50 ft) of adjustable travel, attach the carabiner of the personal end of the system to an appropriate anchor and restrict edge travel using the integrated Purcell connected to your harness. The sleeved web edge-pro helps protect the cord around anchors with abrasive surfaces.

USES Whether using the set-of-fours (SOFs) as a quick 4:1 or 5:1 M/A for a multitude of rigging applications, or for personal edge protection, the versatile AZTEK ProSeries System gives rescuers endless rigging solutions:

• Quickly adjusts litter attendant position
• High angle litter scoops
• Solo pick-off
• Easily pass knots
• Correct disoriented equipment under load
• Effortlessly transfer loads
• Promptly establish dynamic fixed brakes
• Pretensioned back-ties
• Redirect anchors
• Establish travel restriction
• Dynamic directionals
• Dynamic lowers
• Hauling systems
• High angle attendant tether
• Load-releasing hitch
• Personal mechanical advantage (PMA)
• Solo pick-off
• Tensioned guying

The AZTEK ProSeries System comes fully assembled in the AZTEK ProSeries Pack including:

• CMC AZTEK Omni Pulley Set, (one blue, one orange) – UL Classified to NFPA 1983 (2017 ED)

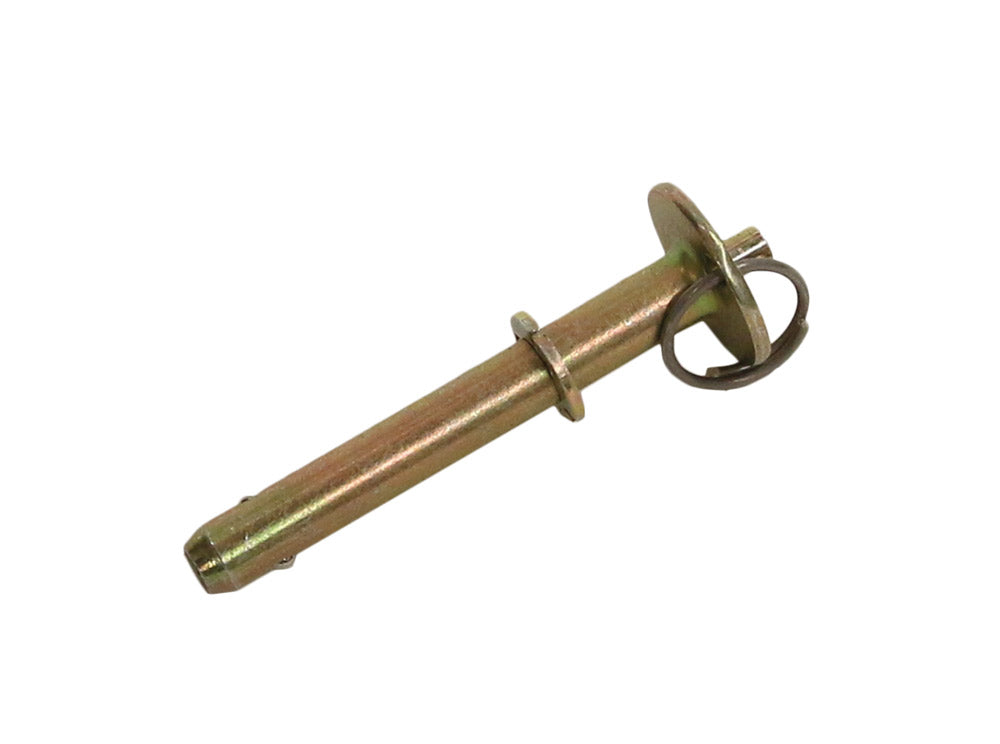

• Quick Pin for AZTEK Omni Pulley
• AZTEK ProSeries Cord – 15.2 m (50 ft) of 8 mm hi-viz orange, 15 kN (3,372 lbf), Sewn-Eye Termination – 12 kN (2,698 lbf)
• AZTEK Edge-Pro Tubular Webbing, blue .6 m (24 in)
• ProTech™ Aluminum Auto-Lock Carabiner w/ removable keeper pin – 29 kN (6,519 lbf)
• AZTEK Bound-Loop Prusik, orange (6 mm) – 9 in
• AZTEK Bound-Loop Prusik, blue (6 mm) – 9 in
• AZTEK Bound-Loop Purcell, blue (6 mm) – 42 in
• Maillon Rapide Quick Link, Oval (7 mm) – 27 kN (6,070 lbf)
